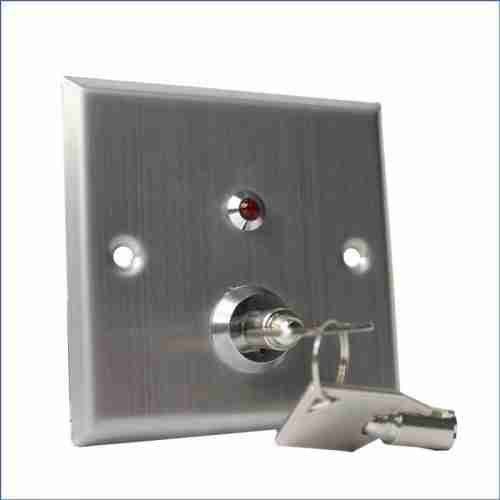

Door Release Keyswitch External Lock Override

A Door Release Keyswitch / External Lock Override is a physical security device used in access control systems to manually unlock or release a secured door, gate, electric strike, or magnetic lock.

What It Is

It’s essentially a key-operated switch mounted near a controlled entry point. When the correct key is turned in the switch, it activates the door release mechanism, temporarily overriding the electronic lock so the door can be opened without using a card, code, or other credential.

How It Works

• The keyswitch is wired into the access control system or directly to the door release relay.

• Under normal conditions, the door remains locked under electronic/electromagnetic control.

• When an authorized person inserts and turns the key:

  • The keyswitch closes an electrical circuit.

  • This energizes a relay that momentarily triggers the door release.

  • The door unlocks so it can be opened manually.

Some systems allow the keyswitch to toggle (stay in the unlocked position until turned back), while others only release the door as long as the key is turned.

Common Uses

✅ Security override — lets authorized staff (e.g., security guards, supervisors) open a door without using the usual access credentials.
✅ Emergency access — quick manual release in case of system failure, power outage, or fire alarm.
✅ Reception/concierge control — reception staff can let visitors in without reprogramming access credentials.
✅ Maintenance/service override — contractors or service personnel can gain entry without interfering with access control settings.

Typical Features

• Keyed operation — often uses standard keys (like Yale type) or restricted keys for higher security.

• Momentary or maintained action — defined by how the circuit behaves when the key is turned.

• Weatherproof housings — for outdoor installations (optional).

• LED indicators — sometimes included to show status (optional).

• Labeling/engraving — often labeled “Door Release” or “Unlock” for clarity.

Installation Points

• Near the door to be controlled.

• In areas accessible only to authorized personnel.

• Integrated with the door strike, maglock, or access control panel.

Benefits

🔹 Simple, reliable manual control
🔹 Adds a layer of supervised access without reprogramming systems
🔹 Useful fallback during power or electronic access failures
🔹 Enhances security while maintaining operational flexibility
