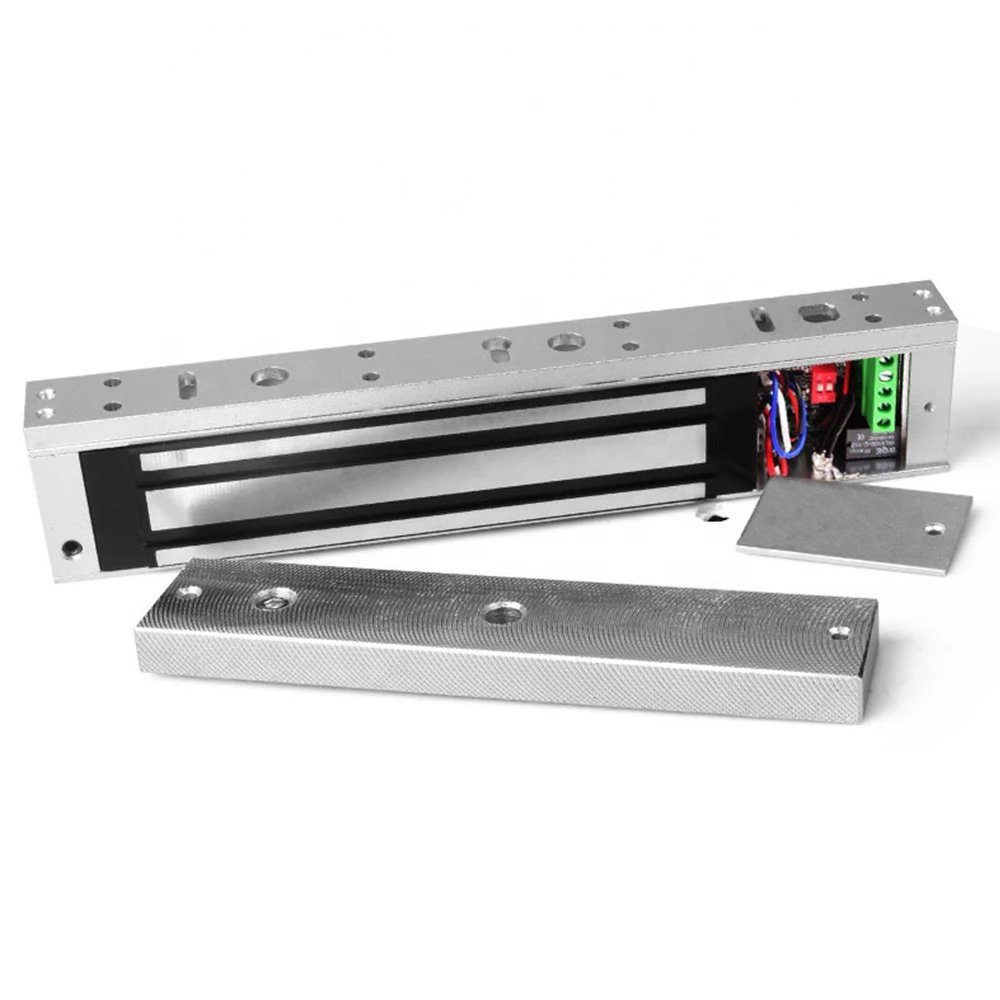

Maglock 280KG Access Control System Lock

Product Description

A 280 KG (600 lbs) Magnetic Lock (Maglock) is an electromagnetic door lock used in access control systems. When powered (usually 12 V DC), the magnet attracts and holds the armature plate with up to 280 kg (600 lbs) of force, making it very hard to open the door without authorization. These locks are widely used in offices, commercial buildings, and high-security areas.

Key Features & Specs

 Strong Holding Force

• Holding Force: ~280 kg (600 lbs) — keeps doors securely locked when engaged.

Power & Operation

• Voltage: Typically 12 V DC (some models also support 24 V DC).

• Current Draw: ~380 – 500 mA at 12 V DC.

• Fail-Safe Mode: Unlocks when power is removed (standard for safety in emergencies).

Build & Durability

• Material: Anodized aluminum housing (durable and corrosion-resistant). A2Z Africa Kenya

• LED Indicator: Many models include LED lights for lock status.

• Reverse Current Protection: Helps prevent damage from power spikes.

Door Compatibility

Works with many door types, including:

• Wooden doors

• Metal doors

• Glass doors (with bracket kits)

• Fireproof doors (with appropriate mounting hardware)

How It Works With Your Access System

A maglock is not a mechanical lock — it’s purely electromagnetic.
 When the access controller (fingerprint reader, card reader, keypad, etc.) grants access, it cuts power to the maglock (fail-safe), allowing the door to open.
The maglock locks automatically when power is applied.

You’ll typically connect your:

• 12 V 5 A power supply

• Access controller

• Exit push button
  … so that the controller and lock work together securely.

Installation & Mounting

• Usually surface mounted with the magnet on the door frame and the armature plate on the moving door.

• For glass doors, you’ll use special brackets (U/Z/L-type).

• Be sure to align the armature plate and magnet face perfectly to achieve full holding force

• Typical Specs Summary

  Feature	Typical Value
  Holding Force	280 kg (600 lbs)
  Voltage	12 V DC (24 V on some models)
  Current	~380 – 500 mA at 12 V DC
  Operation Mode	Fail-safe (power to lock)
  Material	Anodized Aluminum
  Door Types	Wood, metal, glass, fireproof
