Product Description

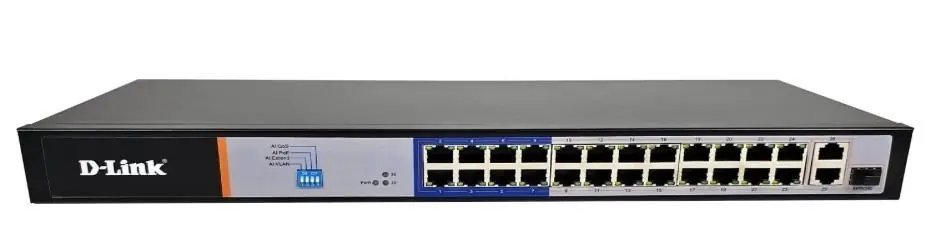

The D-Link DGS-F1026P-E is a high-performance 26-port Gigabit PoE switch designed to provide reliable data connectivity and Power over Ethernet (PoE) for modern business networks. Featuring 24 Gigabit PoE RJ45 ports and 2 Gigabit SFP uplink ports, it is an ideal solution for connecting and powering IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices in offices, schools, hotels, retail stores, and surveillance deployments. Its plug-and-play operation eliminates the need for complex configuration, making installation quick and straightforward.
The switch supports IEEE 802.3af/at PoE standards with a generous 250W total PoE power budget, delivering up to 30W per port to compatible devices. With Extend Mode, ports 1–8 can transmit both power and data over distances of up to 250 meters (at 10 Mbps), making it an excellent choice for long-range CCTV and outdoor network installations without requiring additional power sources.
Designed for dependable performance, the DGS-F1026P-E offers a 52 Gbps switching capacity, 38.69 Mpps forwarding rate, and an 8K MAC address table to ensure smooth traffic handling across busy networks. Convenient DIP switch modes enable VLAN isolation, QoS prioritization, Extend Mode, and PoE Watchdog, which automatically detects and restarts unresponsive PoE devices to minimize downtime. Additional features such as IEEE 802.3x Flow Control, Auto MDI/MDIX, and Store-and-Forward switching further enhance network reliability.
Built with a durable metal chassis, the switch includes 6 kV surge protection to safeguard connected equipment from electrical surges and lightning. Its fanless design ensures silent operation, making it suitable for offices, classrooms, and other noise-sensitive environments. The integrated 2 SFP uplink ports provide high-speed fiber connectivity for network expansion and long-distance backbone links.
Key Features:
- 24 × 10/100/1000 Mbps Gigabit PoE RJ45 ports
- 2 × Gigabit SFP uplink ports
- 250W PoE power budget with up to 30W per port
- Supports IEEE 802.3af and IEEE 802.3at PoE+
- Extend Mode supports PoE and data transmission up to 250 meters on ports 1–8
- 52 Gbps switching capacity
- 38.69 Mpps packet forwarding rate
- 8K MAC address table
- One-touch VLAN, QoS, Extend, and PoE Watchdog modes via DIP switches
- IEEE 802.3x Flow Control for reliable data transmission
- Auto MDI/MDIX support on all RJ45 ports
- 6 kV surge protection for enhanced equipment safety
- Fanless metal housing for silent, reliable operation
- Standard 19-inch rack-mountable design
- Ideal for IP surveillance, wireless networking, VoIP systems, and SMB network deployments
Technical Specifications
| Brand
| D-LINK |
| Category
| Networking Products |
| Sub Category
| switches |
| Condition
| New |
