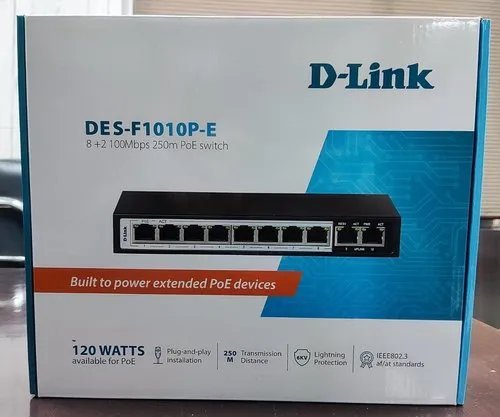

Dlink DES-F1010P-E 10 Ports PoE Switch

Product Description

The D-Link DES-F1010P-E 10-Port PoE Switch is a dependable unmanaged Fast Ethernet switch designed for IP surveillance systems, wireless access points, VoIP phones, and other PoE-enabled devices. It features 8 Fast Ethernet (10/100 Mbps) PoE+ ports for data and power delivery, along with 2 uplink ports for connecting to routers, NVRs, or additional switches. Its Long Range PoE mode extends power and data transmission up to 250 meters, making it ideal for CCTV installations in warehouses, schools, office buildings, and outdoor environments.

Supporting IEEE 802.3af/at PoE standards, the DES-F1010P-E can supply up to 30W per PoE port with a 96W total PoE power budget (some regional variants specify up to 120W). This enables the switch to power multiple IP cameras, wireless access points, and IP phones without requiring separate power adapters. The switch also includes Extend Mode, VLAN isolation, QoS (Quality of Service), and PoE Watchdog/Reset features to improve network performance, security, and device reliability.

Designed for simple deployment, the DES-F1010P-E offers plug-and-play operation with no configuration required. Auto MDI/MDI-X support eliminates the need for crossover cables, while the fanless metal housing ensures silent operation and long-term durability. Built-in 6kV surge protection helps protect connected equipment against lightning strikes and electrical surges, making it an excellent choice for demanding surveillance networks.

Key Features

• 8 × 10/100 Mbps Fast Ethernet PoE+ ports
• 2 × uplink ports for network expansion
• IEEE 802.3af/at PoE compliant
• Up to 30W PoE output per port
• 96W total PoE budget (some hardware revisions offer 120W)
• 250m Long Range PoE transmission in Extend Mode
• VLAN isolation to reduce broadcast traffic and improve security
• QoS for prioritizing voice and video traffic
• Intelligent PoE Watchdog/Reset for automatic recovery of unresponsive PoE devices
• 6kV lightning and surge protection
• Plug-and-play installation with Auto MDI/MDI-X
• Fanless metal enclosure for quiet, reliable operation
