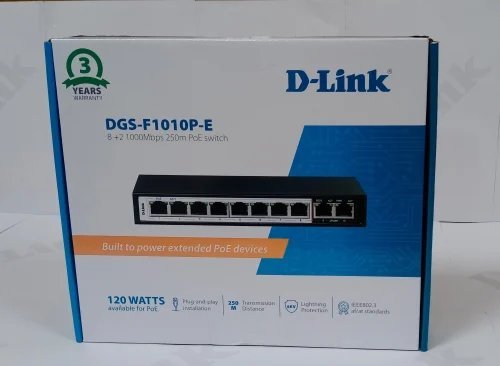

Dlink DGS-F1010P-E 250M 10-Port 1000Mbps Switch with 8 PoE Ports and 2 Uplink Ports

The D-Link DGS-F1010P-E 250M 10-Port Gigabit PoE Switch is a reliable unmanaged network switch designed for IP surveillance, wireless access points, VoIP phones, and other PoE-enabled devices. Featuring 8 Gigabit PoE+ ports and 2 Gigabit uplink ports, it delivers both power and high-speed data over a single Ethernet cable, simplifying installations while reducing cabling costs. Its 250-meter Extended PoE mode makes it an excellent choice for large buildings, warehouses, schools, and outdoor CCTV deployments where devices are located far from the network cabinet.

With support for IEEE 802.3af/at PoE standards, the switch provides up to 30W per PoE port and a 96W total PoE power budget, allowing it to power multiple IP cameras, wireless access points, and IP phones simultaneously. The switch also includes intelligent features such as VLAN isolation to reduce broadcast traffic, QoS (Quality of Service) for prioritizing video streams, and PoE Extend Mode for long-distance data and power transmission up to 250 meters at reduced network speeds.

Designed for hassle-free deployment, the DGS-F1010P-E offers plug-and-play installation with auto-negotiation and Auto MDI/MDI-X support, eliminating the need for manual configuration or crossover cables. It also incorporates 6kV surge protection to safeguard connected equipment from lightning and electrical surges, making it suitable for demanding surveillance installations. Additionally, its intelligent PoE detection can automatically restart unresponsive PoE devices, helping maintain continuous network uptime.

Key Features

• 8 × 10/100/1000 Mbps Gigabit PoE+ ports
• 2 × 10/100/1000 Mbps Gigabit uplink ports
• IEEE 802.3af/at PoE compliant
• Up to 30W PoE output per port
• 96W total PoE power budget
• 250m Extended PoE transmission mode
• VLAN mode for improved network security and reduced broadcast traffic
• QoS optimization for video surveillance and VoIP
• Intelligent PoE watchdog for automatic device recovery
• 6kV lightning and surge protection
• Plug-and-play operation with no configuration required
• Silent, fanless design suitable for office and surveillance environments
