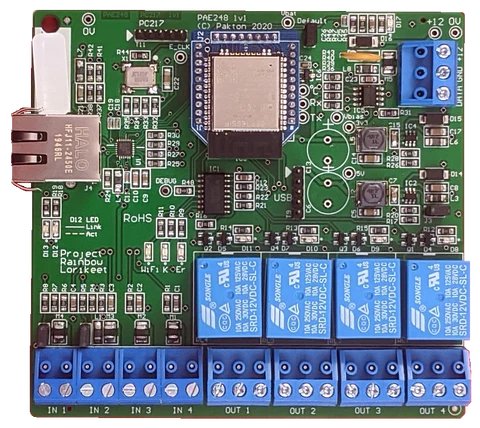

WIFI JVA GPIO TCP/IP

Product Description

A JVA WiFi GPIO TCP/IP module is a network-enabled interface device (commonly used with JVA Technologies systems) that allows you to:

• Connect GPIO (General Purpose Input/Output) signals

• Over a WiFi network

• Using the TCP/IP communication protocol

👉 In simple terms:
It lets physical electrical signals (like switches, alarms, sensors) communicate over a network wirelessly.

 Key Components Explained

1. GPIO (General Purpose Input/Output)

• These are programmable pins on the device.

• They can act as:

  • Inputs → read signals (e.g., gate open/closed, alarm triggered)

  • Outputs → send signals (e.g., turn on siren, trigger relay)

2. WiFi Connectivity

• The module connects to a local wireless network.

• Eliminates the need for Ethernet cables.

• Enables remote monitoring and control from:

  • Computers

  • Mobile apps

  • Cloud systems

3. TCP/IP Protocol

• Standard communication method used on the internet and LANs.

• Allows the device to:

  • Send/receive structured data packets

  • Communicate with servers, SCADA systems, or custom software

• Typically uses:

  • TCP sockets (reliable communication)

  • IP addressing (device identification on network)

 How It Works (Simple Flow)

1. A sensor (e.g., fence voltage alarm) triggers a GPIO input

2. The module reads this signal

3. It sends the data over WiFi using TCP/IP

4. A remote system receives it and:

   • Logs the event

   • Sends alerts

   • Triggers actions

Or the reverse:

1. A command is sent from software

2. The module receives it via TCP/IP

3. It activates a GPIO output (e.g., switch relay ON)

 Typical Use Cases

• Electric fence monitoring (JVA energizers)

• Remote gate or barrier control

• Security alarm integration

• Industrial automation (basic I/O control)

• IoT (Internet of Things) applications

 Advantages

• Wireless installation (less cabling)

• Real-time remote control

• Easy integration with existing IP networks

• Scalable (multiple devices on same network)

Considerations

• Requires stable WiFi coverage

• Needs proper IP configuration (static or DHCP)

• Security setup (passwords, firewalls) is important

• Latency may be higher than wired Ethernet

 In Context (JVA Systems)

With JVA Technologies equipment, this module is often used to:

• Interface energizers with monitoring software

• Provide remote diagnostics

• Integrate fence alarms into centralized security systems
