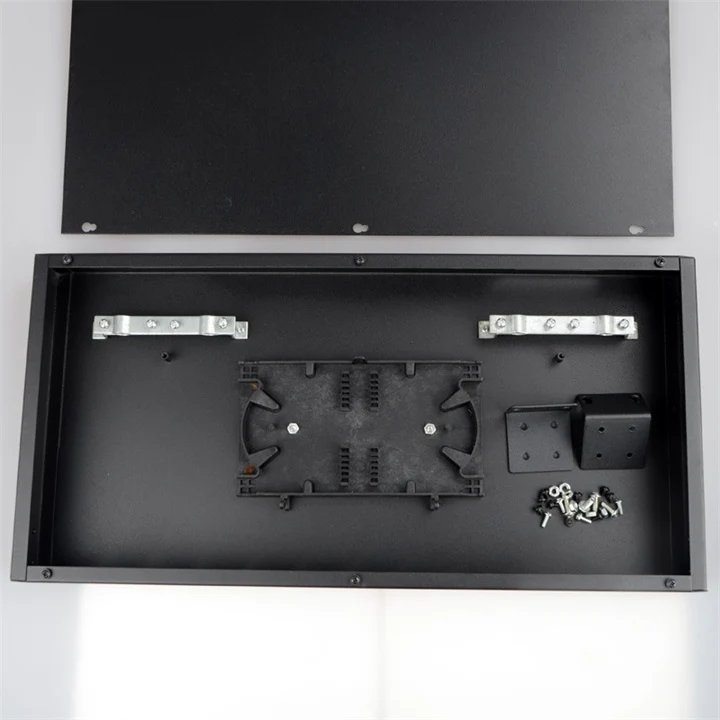

12 Port 1U LC/UPC Duplex MM Adapter Rack mount ODF

The 12 Port 1U LC/UPC Duplex Multimode Adapter Rack Mount ODF is a compact, high-density fiber management unit designed for organizing, terminating, and distributing optical fiber connections in structured cabling systems such as data centers, telecom rooms, and enterprise networks.

Key Features

• 1U Rack-Mount Design:
  Occupies a single rack unit (1U) in a standard 19-inch rack, ensuring efficient use of space in network cabinets.
• 12 LC Duplex Ports:
  Equipped with 12 LC duplex adapters, allowing up to 24 fiber connections (Tx/Rx pairs), ideal for medium-density fiber deployments.
• UPC Polishing (Ultra Physical Contact):
  Ensures low insertion loss and high return loss, improving signal quality and minimizing back reflection.
• Multimode Fiber Support (MM):
  Compatible with OM1, OM2, OM3, OM4, and OM5 fibers, supporting common multimode applications (50/125 µm and 62.5/125 µm).
• High Optical Performance:
  • Insertion Loss: ≤ 0.3 dB
  • Return Loss: ≥ 50 dB
  • Durability: > 1000 mating cycles
• Robust Construction:
  Made from cold-rolled steel with a powder-coated finish, providing durability, corrosion resistance, and long service life.
• Integrated Cable Management:
  Features rear cable routing guides or trays to ensure organized fiber routing, bend radius protection, and strain relief.
• Front Access Design:
  Enables easy installation, patching, inspection, and maintenance without removing the unit from the rack.
• Standards Compliance:
  Meets industry standards such as TIA/EIA, IEC, and RoHS, ensuring reliability and safety in professional installations.

Applications

• Data centers and server rooms
• Telecommunications networks
• LAN/WAN fiber distribution
• Fiber-to-the-home (FTTH) systems
• Campus and enterprise network infrastructure

Summary

This ODF provides a reliable, space-saving, and organized solution for managing multimode fiber connections. With its LC duplex configuration, high performance, and durable build, it is ideal for environments requiring efficient fiber patching and distribution.
